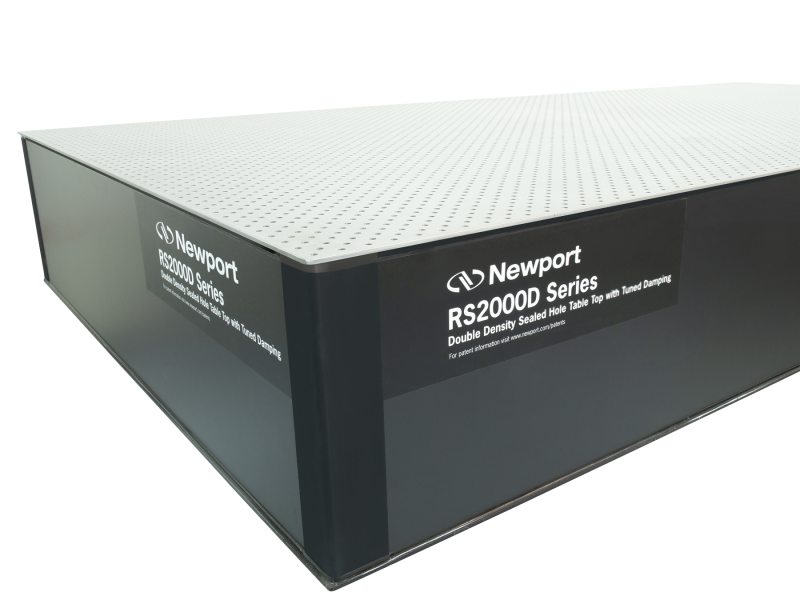

Optical Table, 2 Tunable Dampers, 1200 x 2400 x 203 mm, Double Density M6

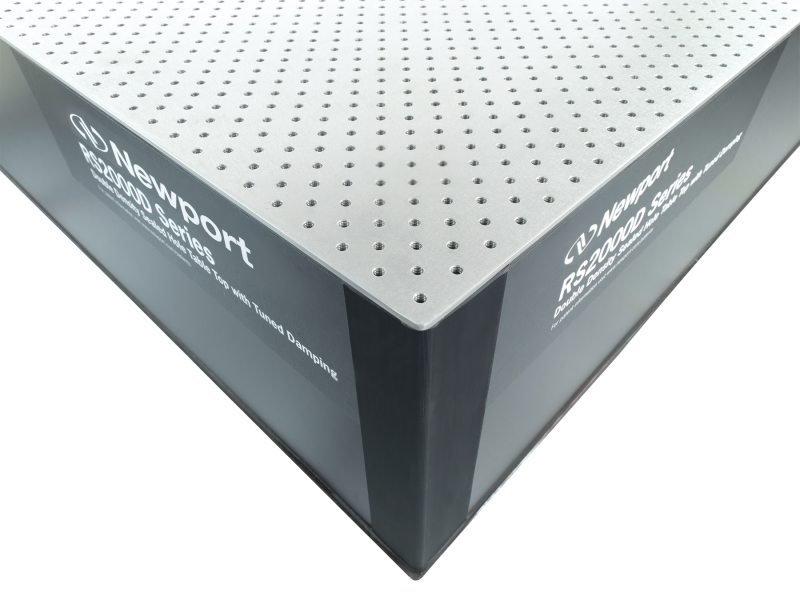

The M-RS2000D-48-8 Double Density Research Grade Optical Table is identical to the RS2000 series in every way except for a unique double-density hole grid pattern that is ideal for applications requiring a dense mounting surface, such as laser cooling, atomic physics, and spectroscopy. Due to the unmatched low frequency superiority of Newport vibration absorber tuned damping technology, its performance easily rivals the performance of other top-of-the-line table tops on the market. This 203 mm thick optical table has a 1200 mm width, a 2400 mm length, and M6 holes on a 25 mm, double density grid. Its supreme stability has meant the difference between success and failure in countless leading edge applications where stringent vibration protection on a limited budget is required.
Specifications
- Broadband DampingConstrained layer core, damped working surface and composite edge finish
- Tuned Damping2 Narrowband Precision Tuned Dampers
- Width1200 mm
- Length2400 mm
- Thickness203 mm
- Working Surface4.8 mm thick 400 series ferromagnetic stainless steel
- Surface Flatness±0.1 mm over 600 mm square
- Mounting HolesM6
- Mounting Hole Pattern25 mm grid, double density
- Alpha-Numeric Grid LabelsNo
- Mounting Hole Borders12.5 mm
- Hole Sealing TypeEasy clean conical cup, 16 mm deep, non-corrosive high impact polymer material
- Core DesignTrussed honeycomb, vertically bonded closed cell construction, 0.25 mm steel sheet materials, 0.76 mm triple core interface
- Bottom Skin Material4.8 mm thick carbon steel
- Non-Magnetic SurfaceNo
- Weight392 kg
- Crated Weight478 kg
