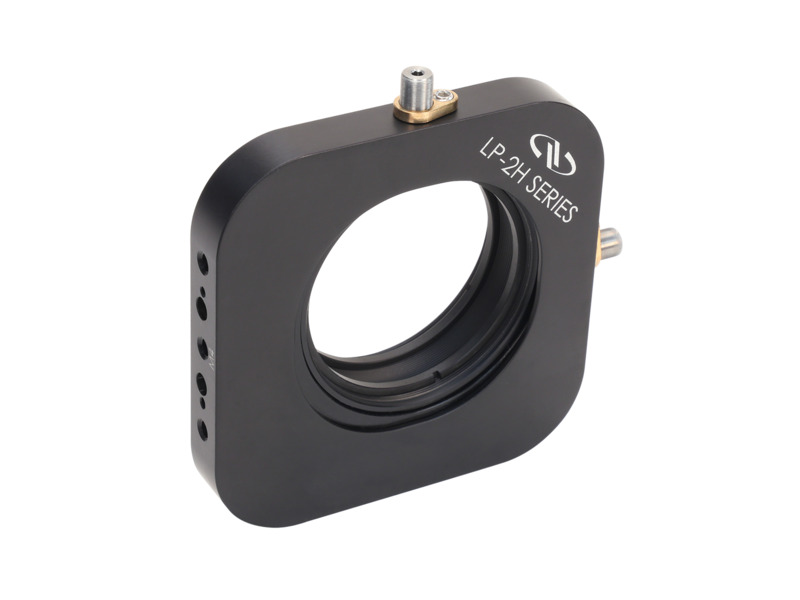

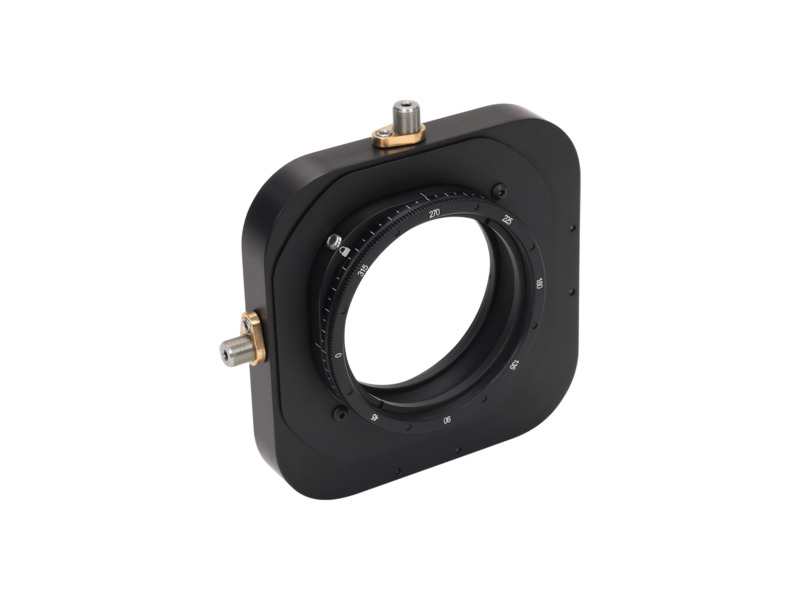

Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, M4 THD
Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, M4 THD
Model: M-LPXYR-2H
In Stock
Product Series Overview
Compact Multi-Axis Lens PositionersThe M-LPXYR-2H Compact Lens Positioner provides an economical solution for applications requiring three (XYθZ) axes of adjustment within a limited space. Precise, 100 TPI hex-key adjusters allow smooth adjustment with increased sensitivity. Independent locks for each axis securely lock the adjustment screws, maintaining stable optical alignment. Each unit is supplied with two retaining rings to safely secure optical elements with an outer diameter of 2.0 inch (50.8 mm). The threaded central aperture can also accommodate a variety of optomechanical components with SM2 (2.035-40) thread. Post mounting is achieved by accessing the tapped M4 threaded holes in the mount body. Designed with OEM applications in mind, the lens positioner includes alignment pin holes to enable keying of the position and orientation by means of dowel pins for repeatable system integration and to prevent clocking effects.
Specifications
- TypeLens Positioner
- Optic Diameter50.8 mm
- 13.7 mm
- Optical Axis Height44.5 mm
- AdjustmentsXY θZ
- Adjustment Screw Thread100 TPI
- Travel, XY±2.0 mm
- Angular Range, θZ360°
- Retaining Ring
(2 Included) - Retaining Ring Thread2.035-40
- Thread TypeM4 THD
- MaterialAnodized Aluminum
Resources & Downloads
Other
MKS EU RoHS3 - LP-2H Series(231.6 kB, PDF)
