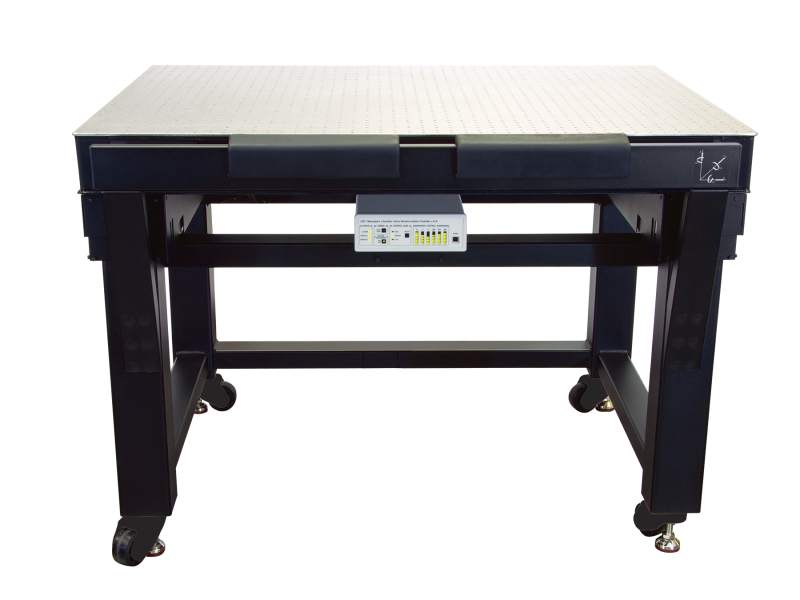

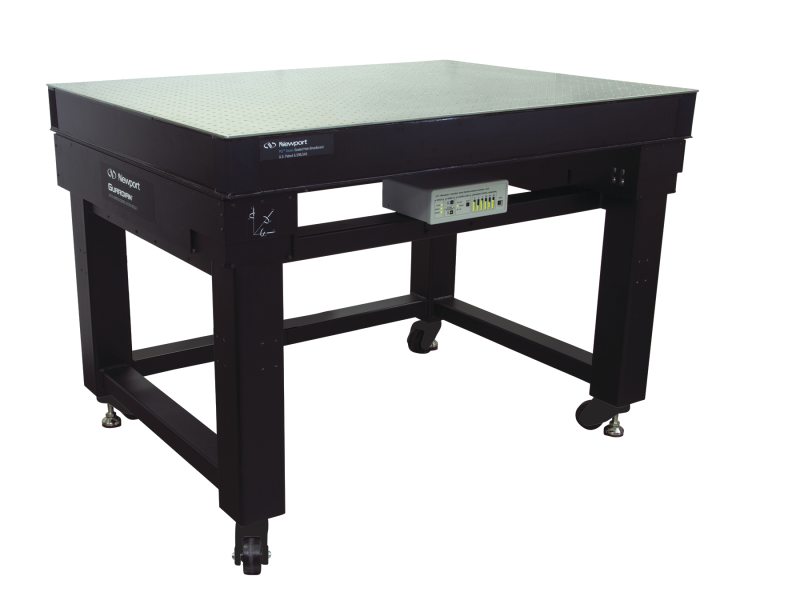

Active Isolation Workstation, 900x1500 mm, 4.3 in. PG Breadboard, 110 kg

The M-GW3660-PG4-H Guardian^® Active Isolation Workstation delivers sub-hertz vibration isolation (six degrees of freedom) in a plug-and-play form factor.  The Guardian platforms dynamically respond to vibrations in the environment enabling sub-hertz vibration isolation starting at 0.5 Hz and reaching 20 dB attenuation (10X) at 1.5 Hz. The GW3648-PG4-H provides a 900 x 1500 mm table surface at a working height of 868 mm.  It can support a payload of up to 110 kg.  Guardian workstations feature 110 mm thick damped PG breadboards, a rigid fully welded frame with casters, integrated active and passive isolation modules, ultra-low noise electronics and advanced DSP control system, and a user friendly, computer interface.  All of these features have been designed specifically to deliver high performance and improve setup and ease of use.
