Sorry, this product is no longer offered for sale. It was discontinued on Jan 22, 2022.

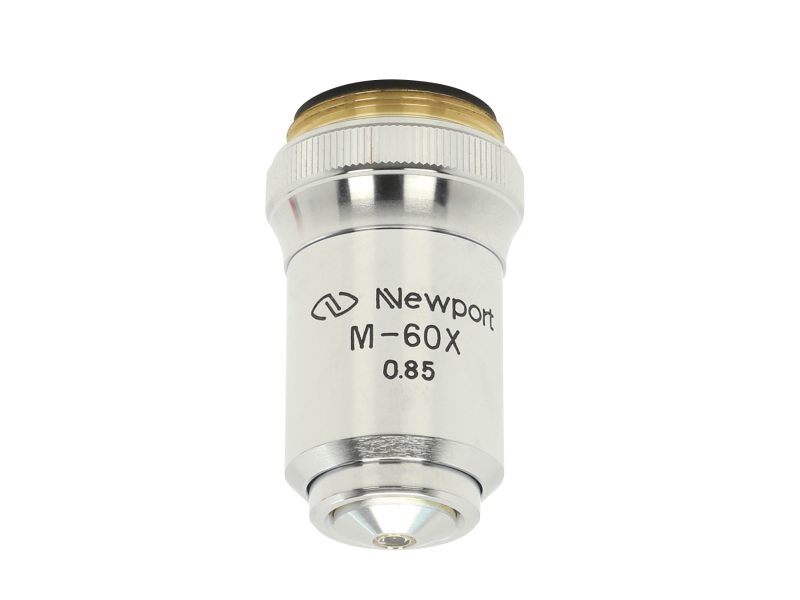

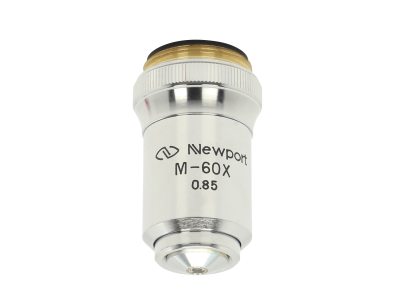

Microscope Objective Lens, 60x, 0.85 NA, 2.9 mm Focal Length

  • Objective Type
    Microscope
  • Magnification
    60x
  • Numerical Aperture
    0.85
  • Wavelength Range
    400-700 nm
  • Effective Focal Length (EFL)
    2.9 mm
  • Working Distance
    0.3 mm
  • Thread Type
    0.800-36 RMS
  • Tube Length
    160 mm
  • Clear Aperture
    4.5 mm
