Lens Mounts Pack, Fixed, 50.8 mm Diameter, 8-32 Thd, Qty 10, A-LINE

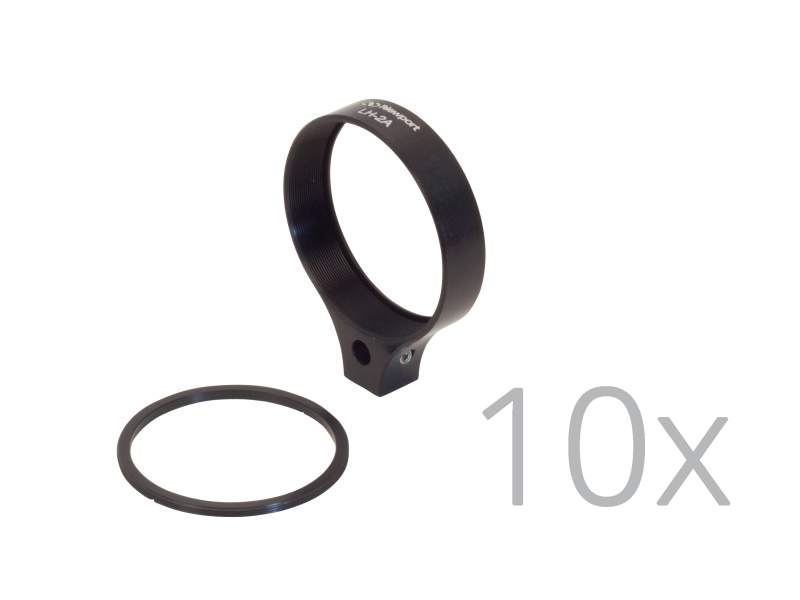

This is a 10-pack of the Fixed Lens Mount. The cost-saving A-LINE™ LH-2A Fixed Lens Mount 10 pack is a convenient and economical solution for mounting Ø2 inch (50.8 mm) lenses and beamsplitters. The lens mount consists of a threaded holder with a retaining ring to hold the optic firmly, but gently. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts. The front of the holder also has a special 6 mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Fixed Lens Mount
Optic Diameter
50.8 mm
Edge Thickness (T<sub>e</sub>)
9 mm
Optical Axis Height
44.5 mm
Adjustments
Fixed

Optic Retaining Thread
2.035‐40
Clear Aperture
47.5 mm
Thread Type
8-32

Type
Fixed Lens Mount
Optic Diameter
50.8 mm
Edge Thickness (T<sub>e</sub>)
9 mm
Optical Axis Height
44.5 mm
Adjustments
Fixed

Optic Retaining Thread
2.035‐40
Clear Aperture
47.5 mm
Thread Type
8-32

Resources & Downloads

2D Product Drawings

LH-A(128.2 kB, PDF)
