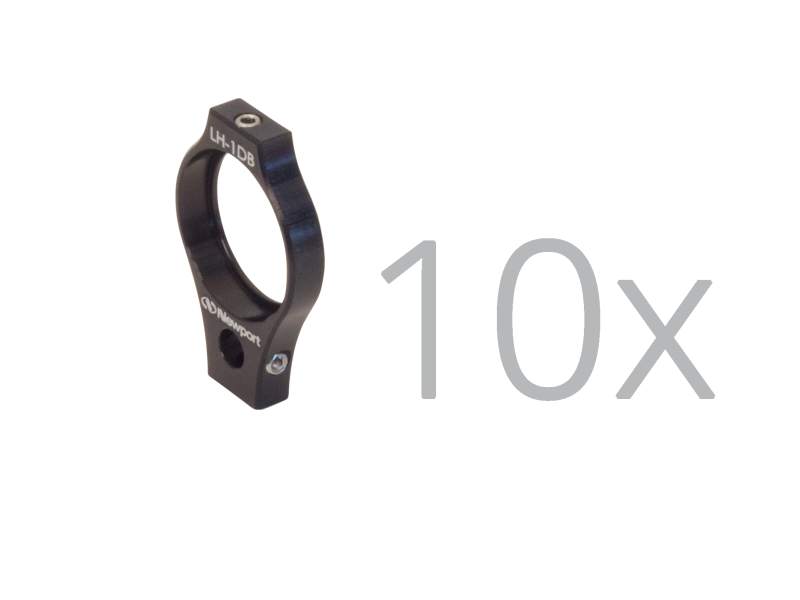

Mirror Mount Pack, Fixed, 25.4 mm Diameter, 8-32, A-LINE, Qty 10

This is a 10-pack of the Fixed Mirror Mount. The cost-saving A-LINE™ LH-1DB Fixed Mirror Mount 10 pack is a convenient and economical solution for mounting Ø1.0 inch (25.4 mm) mirrors, beamsplitters or UPA series 1-in adaptors. The mount consists of a double-bored aperture and set screw to hold the optic firmly, but gently. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts. The front of the holder also has a special 6 mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Pack of Mounts
Optic Diameter
25.4 mm
Adjustments
Fixed
Optical Axis Height
31.8 mm
Thread Type
8-32

Clear Aperture
23.9 mm
Pack Quantity
10

Type
Pack of Mounts
Optic Diameter
25.4 mm
Adjustments
Fixed
Optical Axis Height
31.8 mm
Thread Type
8-32

Clear Aperture
23.9 mm
Pack Quantity
10
