Lens Mounts Pack, Fixed, 25.4 mm Diameter, 8-32 Thd, Qty 10, A-LINE

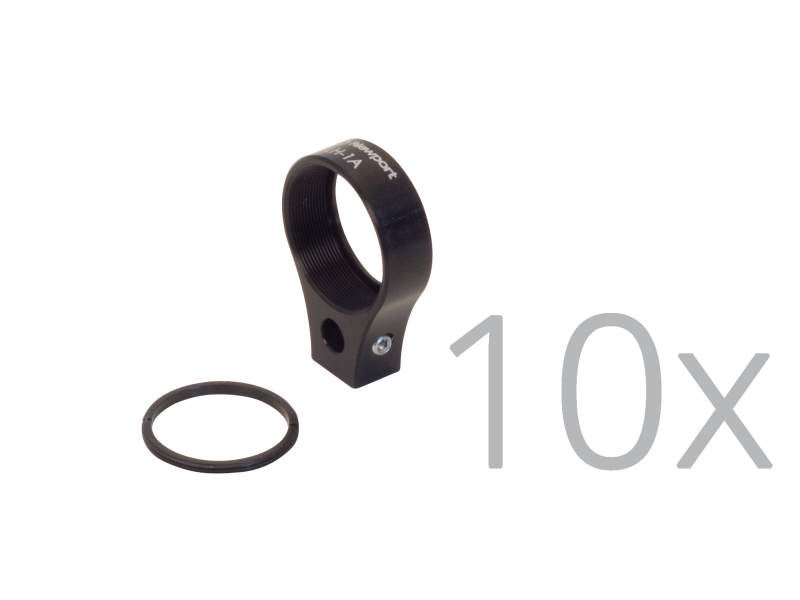

This is a 10-pack of the Fixed Lens Mount. The cost-saving A-LINE™ LH-1A Fixed Lens Mount 10 pack is a convenient and economical solution for mounting Ø1.0 inch (25.4 mm) lenses and beamsplitters. The lens mount consists of a threaded holder with a retaining ring to hold the optic firmly, but gently. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts. The front of the holder also has a special 6-mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Fixed Lens Mount
Optic Diameter
25.4 mm
Edge Thickness (T<sub>e</sub>)
7 mm
Optical Axis Height
31.8 mm
Adjustments
Fixed

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm
Thread Type
8-32

Type
Fixed Lens Mount
Optic Diameter
25.4 mm
Edge Thickness (T<sub>e</sub>)
7 mm
Optical Axis Height
31.8 mm
Adjustments
Fixed

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm
Thread Type
8-32

Resources & Downloads

2D Product Drawings

LH-A(128.2 kB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Avail.	Price
M1-PKMirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators, 10 Pack	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$416
SP-2-PKOptical Post Pack, 2 in. Height, 0.5 in. Diameter, 8-32, 1/4-20, Qty 10	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$56
PS-F-1.0-PKClamping Fork 10 Pack, 1.0 in. Diameter Pedestal, 1.0 in. Slot Length, 1/4-20 (M6) Slot	UNIVERSAL	In Stock	$94

Similar

Description	Compatibility	Avail.	Price
LH-3AFixed Lens Mount, 3.0 in. (76.2 mm), 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$70
LH-2AFixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37
LH1-1ROptic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$31
LCM-1Lens Mount, Self-Centering, 0.125-1.063 in. Diameter Lenses	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$288
LH-30MFixed Lens Mount, 30 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$35
LT10-10Lens Tube, 1 inch LT Series, 1 inch length	UNIVERSAL	1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More	$23
LH-0.5AFixed Lens Mount, 0.50 in. (12.7 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
LP-1APrecision Lens Positioner, 1.0 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,043
LH-1TThin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 Thread., A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$21
LA1V-XYCompact Lens Positioner, XY, 1.0 in. Diameter, 100 TPI	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$192
LH-1.5AFixed Lens Mount, 1.5 in. (38.1 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$35
LH-1DBMirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$24
LH-RMSMicroscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$31
VLH-1AV-Groove Lens Holder, 0.25 to 1.25 in. Diameter Lenses	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$164
ALM-1AVariable Size Lens Mount, 12.7-35 mm, 40 TPI XY Adjusters	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$212
LH-CMTFixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37
AC-1AVariable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$59
LPV-1Compact Lens Positioner, XYZ θXθY, 1.0 in. Diameter, 100 TPI	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$373

Compatible

Description	Compatibility	Avail.	Price
KBX046AR.14Bi-Convex Lens, N-BK7, 25.4 mm Diameter, 25.4 mm EFL, 430-700nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$57
KPX106AR.14Plano-Convex Lens, N-BK7, 25.4 mm Diameter, 200 mm EFL, 430-700 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$44
KPX079AR.14Plano-Convex Lens, N-BK7, 25.4 mm Diameter, 38.1 mm EFL, 430-700 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$44
PAC049Achromatic Doublet Lens, Visible, 25.4 mm, 88.9 mm EFL, 400-700 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$108
