Sorry, this product is no longer offered for sale.

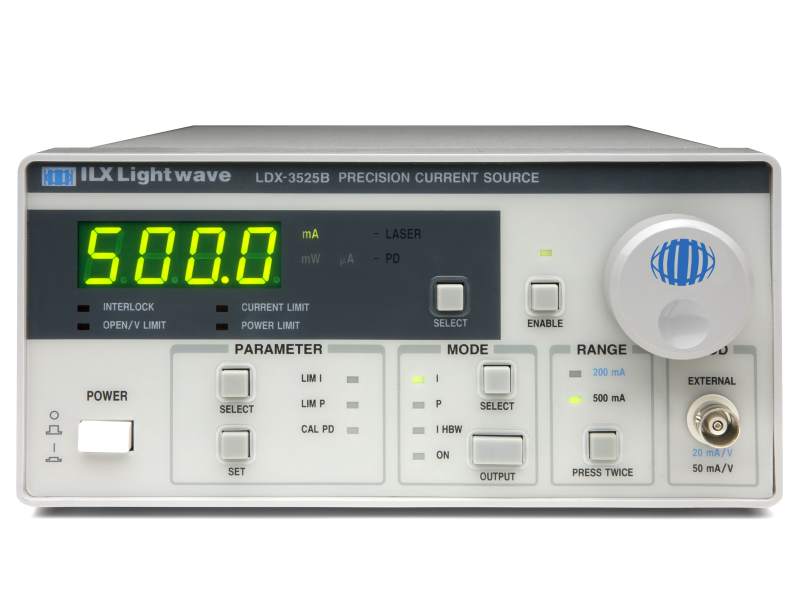

Laser Diode Driver, Precision, 500mA, 7V, USB, 120 VAC [Discontinued]
![Precision Laser Diode Drivers with USB [Discontinued]](https://api.p1.mks.com//medias/sys_master/DefaultCelumAssetsFolder/h4b/hf6/9901206962206/3525b_S-O_800w/3525b-S-O-800w.jpg)
The LDX-3525B Laser Diode Driver is a 500 mA microprocessor-based current source that offers a high stability, low noise output and integrated laser diode protection circuits. In addition to precision current control, the LDX-3525B Laser Diode Driver is loaded with standard features such as dual current ranges, constant power control, fine/coarse set point control, and external modulation capability. For automated testing applications in an R&D or production environment, remote operation is easily accomplished through the USB interface. For virtual instrument programming, LabVIEW® instrument drivers are available free of charge. LabVIEW® instrument drivers can be downloaded from the Literature and Downloads tab on this page.
We offer a wide variety of precision laser diode mounts with plug and play compatibility with our laser diode instrumentation.
Resources & Downloads
Application Notes
Protecting Your Laser Diode(2.3 MB, PDF) Laser Diode Characteristics Overview(392.5 kB, PDF)
Software
ILX Lightwave USB Drivers(61.9 MB, ZIP) LDX-3500B LabVIEW Driver(343.1 kB, ZIP)
Technical Notes
Square Wave Modulation of the LDX-3500B(465.5 kB, PDF) Output Current Accuracy of an LDX-3525B(315.7 kB, PDF) Clamping Limit of an LDX-3525B(344.6 kB, PDF) Long-Term Output Stability of an LDX-3525B(264.4 kB, PDF)
Manuals
LDX-3500B Laser Diode Drivers User's Manual(2.4 MB, PDF)
Literature
LDX-3500B Laser Diode Driver Brochure(802.4 kB, PDF) Pinout Diagrams for CC-305S and CC-505S Cables(88.5 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LDX-3220-120VLaser Diode Driver, Precision, 500mA, 10V, GPIB, 120 VAC | 2 Weeks | ||||
| LDX-3220-220VLaser Diode Driver, Precision, 500mA, 10V, GPIB, 220 VAC | In Stock | ||||

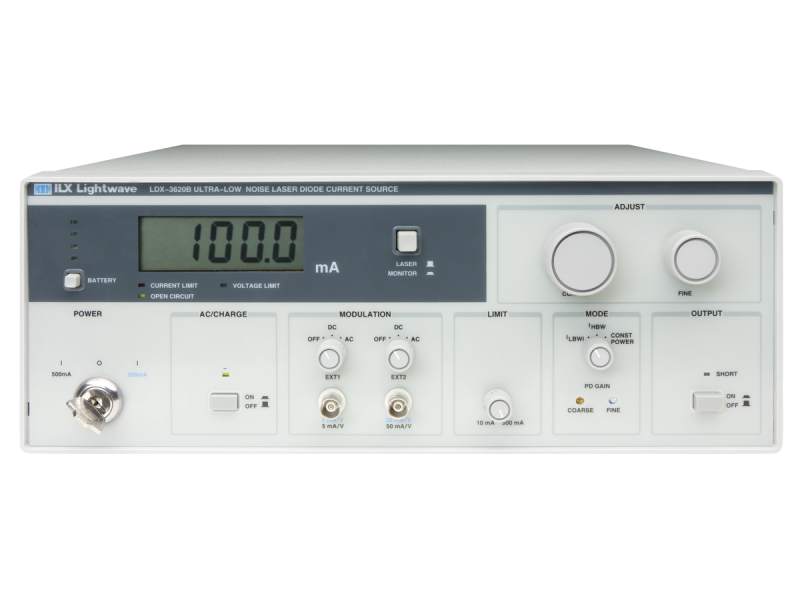

 | LDX-3620BLaser Diode Driver, Ultra Low Noise, 500 mA, Battery Operated | In Stock |
