Combination Driver & TEC Module, 500mA, 6V, 9W TEC, LDC-3908/3916

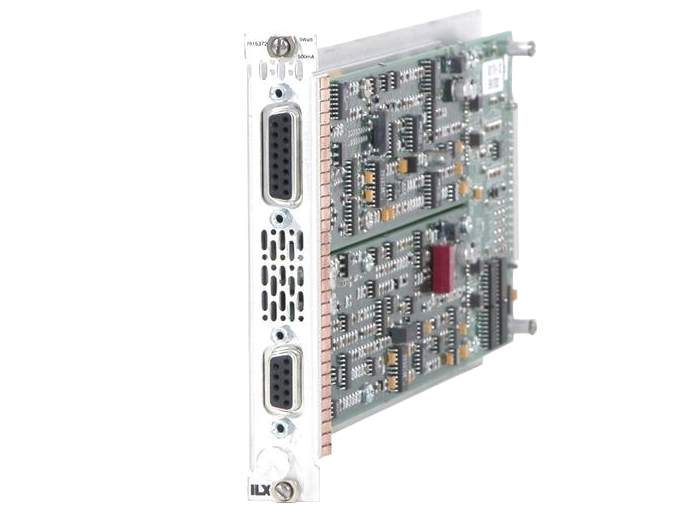

The LDC-3916372 Combination Laser Diode Controller Module offers both a 500 mA laser diode driver, and a 9 W TEC controller in the same module.
The module provides high stability, low noise output with multiple hardware current limits and laser protection features such as intermittent contact protection, adjustable compliance voltage limit, slow turn-on, shorting circuits and 4-wire voltage measurement for precise laser diode forward voltage measurement. The built-in bi-polar temperature controller works with thermistor type temperature sensors for precise temperature control over a wide range of temperatures.
This LDC3916372 module is compatible with the
For applications requiring individual modulation, please contact an ILX Sales Engineer.
Resources & Downloads
Application Notes
Controlling Temperatures of Laser Diodes Thermoelectrically(487.7 kB, PDF) Optimizing TE Drive Current(315.9 kB, PDF) Laser Diode Characteristics Overview(392.5 kB, PDF) Protecting Your Laser Diode(2.3 MB, PDF)
Literature
LDC-3908 8-Channel Laser Diode Controller Brochure(653 kB, PDF) LDC-3916 16-Channel Laser Diode Controller Brochure(655.6 kB, PDF) Pinout Diagrams for CC-305S and CC-505S Cables(88.5 kB, PDF)
Manuals
LDC-3908 Controller User's Manual(2.1 MB, PDF) LDC-3916 Controller User's Manual(2 MB, PDF) LDC-3916370 Controller Modules User's Manual(2.5 MB, PDF)
Technical Notes
Voltage Limit Protection of the LDC-3916 Laser Diode Controller(96.8 kB, PDF) Measurement of 4-Wire Voltage Sense on the LDC-3916 Laser Diode Controller(37.7 kB, PDF)
Software
LDC-391637X LabVIEW Driver Version 0.9(211.5 kB, ZIP)
