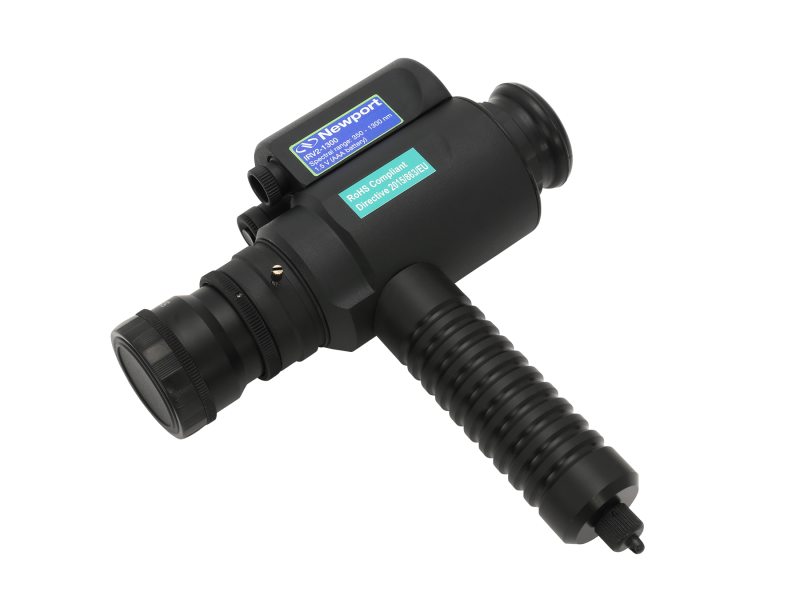

Infrared Viewer, 350-1300 nm Wavelength Range

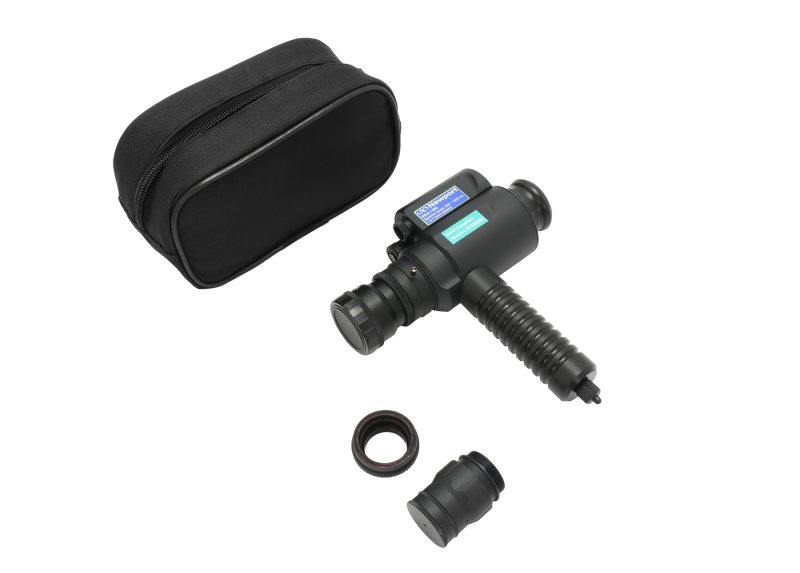

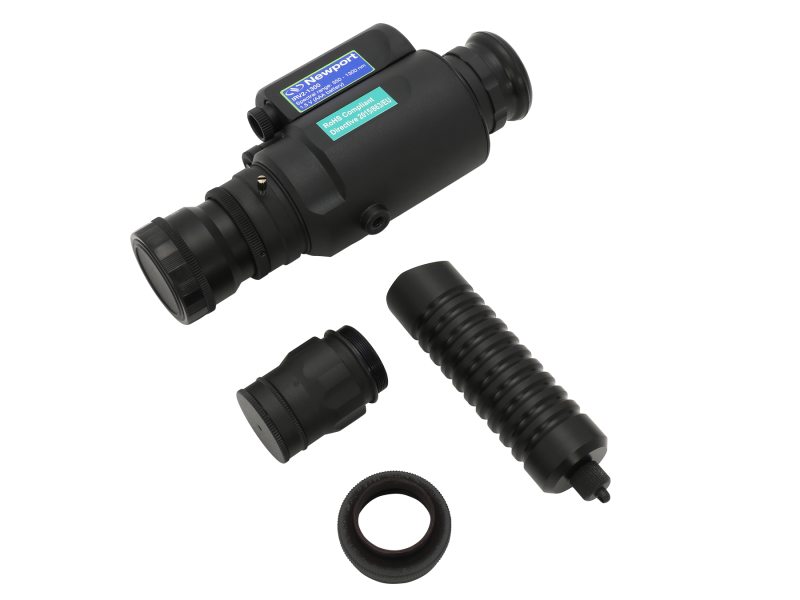

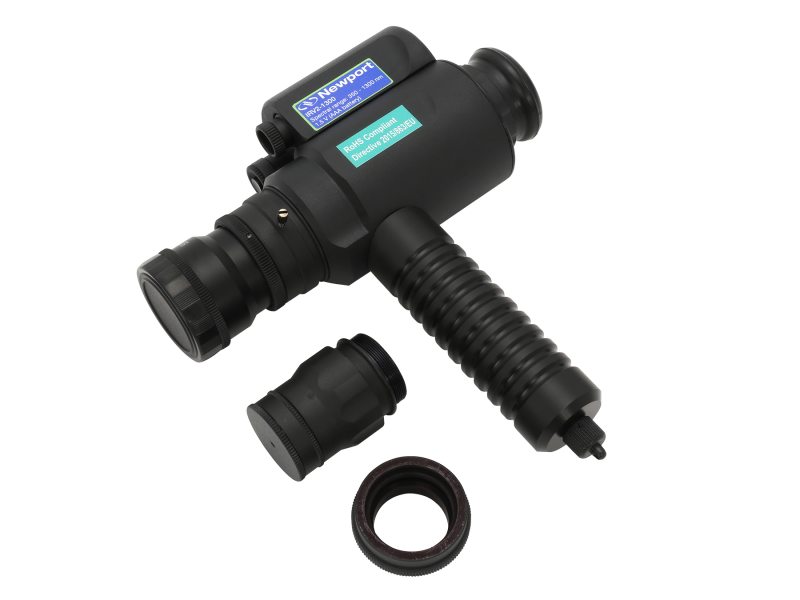

The IRV2-1300 Hand-held Infrared Viewer covers the 350-1300 nm wavelength range and is operated by battery or external 3 VDC adapter. The IR viewer includes the handle, an IR filter, 1x lens, 2x lens and a case. 1/4-20 threaded hole for handle attachment, post or tripod mounting. The 1X and the 2X lens assemblies are easily switchable.

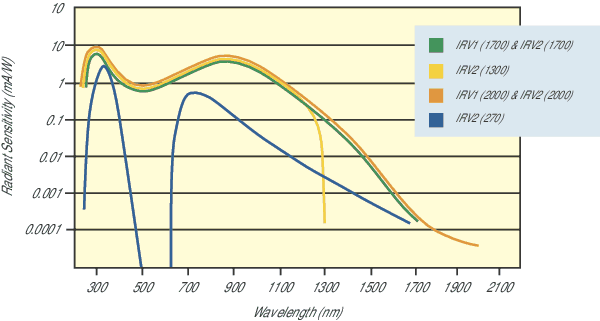

350 to 1300 nm Wavelength Coverage

The Infrared Viewers are offered in various versions with spectral responses that cover anywhere from 350 nm up to 2000 nm.

Handheld, Hands-free or Post-Mounted Operation

The lightweight, compact device can be used handheld, post mounted with the ¼-20 internal thread, or facemask-mounted for hands-free operation.

Wide Variety of Applications

Applications for these IR viewers include laser beam alignment, optical fiber alignment, semiconductor inspection, fluorescence, IR luminescence, thermal imaging, night vision, and photo processing.

External Power Adapter

A 3 VDC adapter, which can be easily purchased at a local electronics store, can be used instead of a battery. Choose an adapter that has the following ratings: 3VDC, 30 mA, 5.5 mm outer diameter, 2.1 mm inner diameter (female), center positive.
