Sorry, this product is no longer offered for sale. The recommended replacement product is TF-36-24-N.

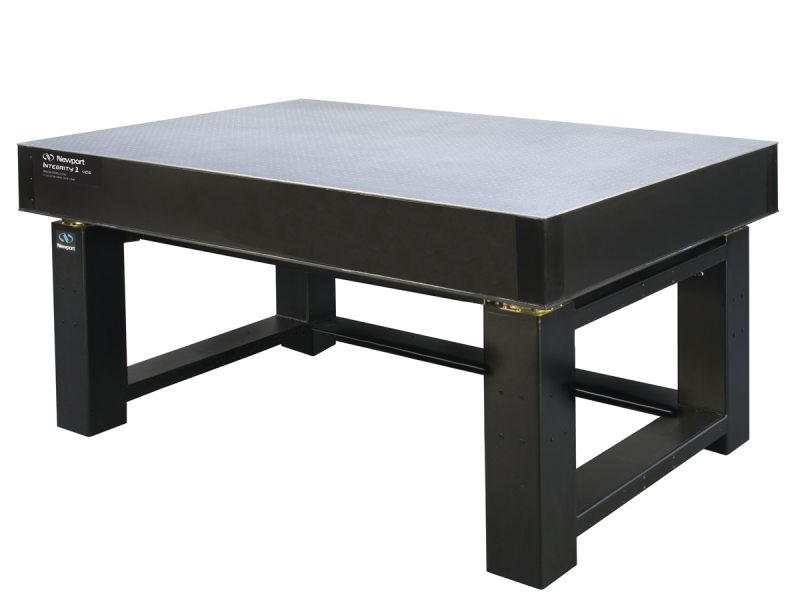

Optical Table System, Integrity 4 VCS, 3 x 6 ft., 12 in. Thick, Rigid
The Integrity 4 Series VCS is an integrated platform designed for challenging applications with its built-in precision tunable damping technology used in RS2000 Series optical tabletops. Integrity 4 Series VCS Systems are often used in imaging, spectroscopy and optical characterization applications. The INT4-36-12-N VCS™ Vibration Control System includes a rigid support frame and a 3 ft. wide x 6 ft. long x 12 in. thick optical platform with 1/4-20 threaded holes on a 1 in. grid. Integrity VCS systems' innovative isolation platform features an optional integrated shelf and mobility accessories to optimize laboratory space, organization and safety. Specifications
Type
Optical Table System
Rigid Supports Included
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
2 Narrowband Precision Tuned Dampers
Active Damping
No
Width
3 ft.
Length
6 ft.
Thickness
12 in.
Working Surface Height
40.7 ±0.5 in.
Mounting Holes
1/4-20
Working Surface
3/16 in. thick 400 series ferromagnetic stainless steel
Surface Flatness
±0.004 in. over 2 ft. square
Mounting Hole Pattern
1 in. grid
Mounting Hole Borders
0.5 in.
Alphanumeric Grid Labels
No
Hole Sealing Type
Easy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
Bottom Skin Material
3/16 in. thick carbon steel
Weight - Tabletop
600 lb
741 lb
Crated Weight - Tabletop
750 lb
944 lb
Frame Assembly Height
28.7 ±0.5 in.
