Optical Table System, Integrity 3 VCS, 4 x 10 ft., 8 in. Thick, Isolated

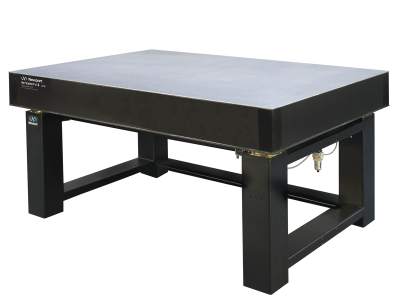

The Integrity 3 Series VCS is designed to provide a superior working surface for vibrationally sensitive photonics applications due to a trussed honeycomb core design with proprietary tuned and broadband damping systems. Integrity 3 Series VCS Systems are often used in imaging and single mode fiber launch applications . The INT3-410-8-A VCS™ Vibration Control System includes an active leveling isolated support frame and a 4 ft. wide x 10 ft. long x 8 in. thick optical platform with 1/4-20 threaded holes on a 1 in. grid. The isolated VCS™ platform also integrates Newport’s pneumatic isolation with a new rigid frame design to deliver an economical isolation platform with superior isolation performance. Integrity VCS systems' innovative isolation platform features an optional integrated shelf and mobility accessories to optimize laboratory space, organization and safety.
Specifications
- TypeOptical Table System
- Pneumatic Isolators Included
- Broadband DampingConstrained layer core, damped working surface and composite edge finish
- Tuned Damping1 Narrowband Precision Tuned Damper
- Active DampingNo
- Width4 ft.
- Length10 ft.
- Thickness8 in.
- Working Surface Height36.7 ±0.5 in.
- Mounting Holes1/4-20
- Working Surface3/16 in. thick 400 series ferromagnetic stainless steel
- Surface Flatness±0.004 in. over 2 ft. square
- Mounting Hole Pattern1 in. grid
- Mounting Hole Borders0.5 in.
- Alphanumeric Grid LabelsNo
- Hole Sealing TypeEasy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
- Core DesignTrussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
- Bottom Skin Material3/16 in. thick carbon steel
- Horizontal Isolation, Res.1.9 Hz
- Horizontal Amplification at Resonance12.5 dB
- Horizontal Isolation, 5 Hz80%
- Horizontal Isolation, 10 Hz94%
- Vertical Isolation, Res.1.7 Hz
- Vertical Amplification at Resonance15 dB
- Vertical Isolation, 5 Hz86%
- Vertical Isolation, 10 Hz96%
- Load Capacity per Isolator800 lb
- Maximum Payload2170 lb
- Weight - Tabletop1030 lb
- 1327 lb
- Crated Weight - Tabletop1280 lb
- 1657 lb
- Frame Assembly Height28.7 ±0.5 in.
- Maximum Air Pressure85 psi
Resources & Downloads
Manuals
Optical Table Pre-installation Checklist(3.7 MB, PDF) Integrity VCS Optical Tables User's Manual(739.7 kB, PDF)
2D Product Drawings
INT3-A MECHANICAL OUTLINE.PDF(19.2 kB, PDF)
