Fiber Optic Attenuator, In-line, 10 dB Fixed, No Connectors
Fiber Optic Attenuator, In-line, 10 dB Fixed, No Connectors
Model: F-FIA-10
In Stock
Product Series Overview

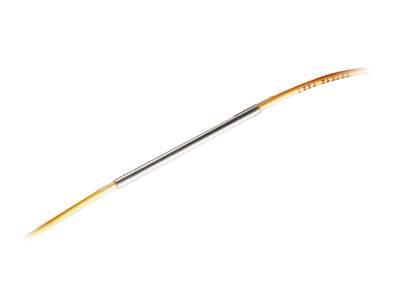

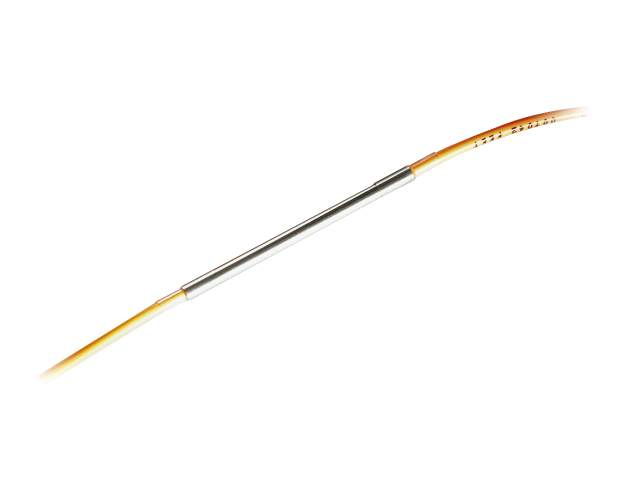

Fixed Fiber Optic AttenuatorsThe F-FIA-10 In-Line Fiber Attenuator is configured for dual window use at both 1310 and 1550 nm. The 10 dB Attenuation is accurate to <±0.3 dB. The attenuator comes with bare 1 m fiber pigtails on each side.
In-Line Fiber Pigtailed Attenuators

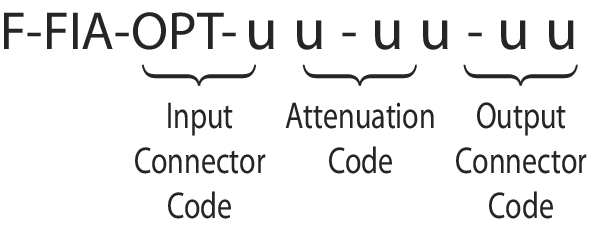

The F-FIA Series In-Line Fiber Attenuators are configured for dual window use at both 1310 and 1550 nm. Attenuation accuracy is <±0.3 dB for values up to 10 dB, and <±0.5 dB for values 10–20 dB. The product comes with 1 m fiber each side with a choice of termination option.
Specifications
- TypeFiber-optic Attenuator
- Fiber ConnectorBare Fiber
- Operating Wavelength1310/1550 nm
- Maximum Optical Power300 mW
- Option Code10
- Attenuation10 dB
