XYZ Linear Stage, Gothic-Arch, 25 x 25 mm, Micro YZ, Pico X, M4

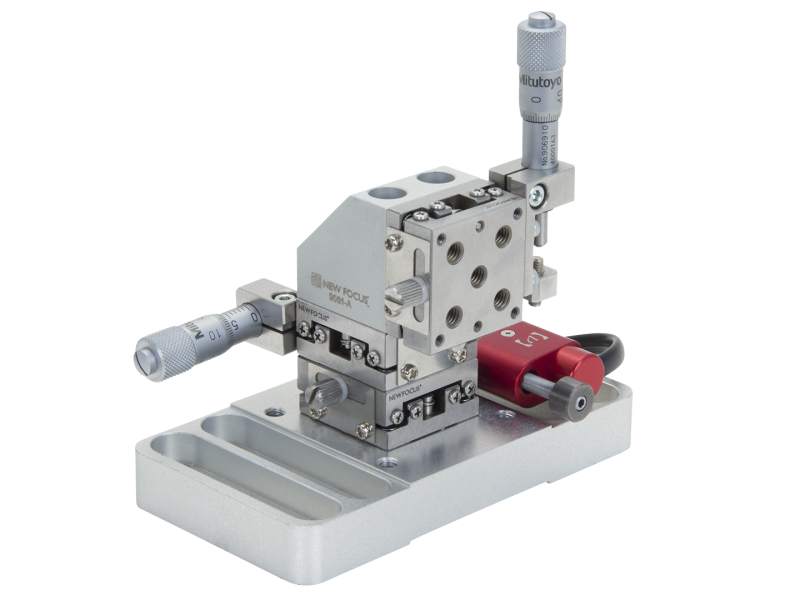

The 9061-XYZ-PNN-M Compact Motorized Gothic-Arch Bearing Stage incorporates our Picomotor™ actuators with our compact gothic-arch-bearing translation stages. This achieves the ultimate in stability and rigidity of a 25 x 25 mm platform along with remote-control operation of the 5 mm of X Travel and micrometer control of the Y and Z axis. All necessary clamps, brackets, and base plates are included so that the stage can be used right out of the box. The stage offers stainless-steel construction, thumbscrew locks, and a 5 mm travel range. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. M4 mounting threads.
Resources & Downloads
2D Product Drawings
ENGINEER - 9061_XYZ(252.5 kB, PDF)
Literature
Picomotor FAQ(3.1 MB, PDF)
