Spectrograph, 1/8 m, Grating and Slit Ordered Separately, MS125

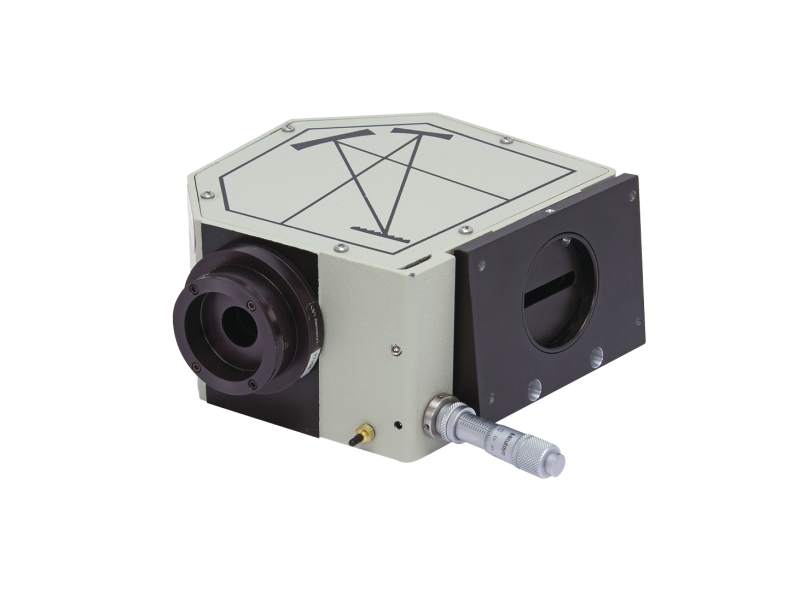

MS125 and LineSpec CCD Linear Array Spectrometers

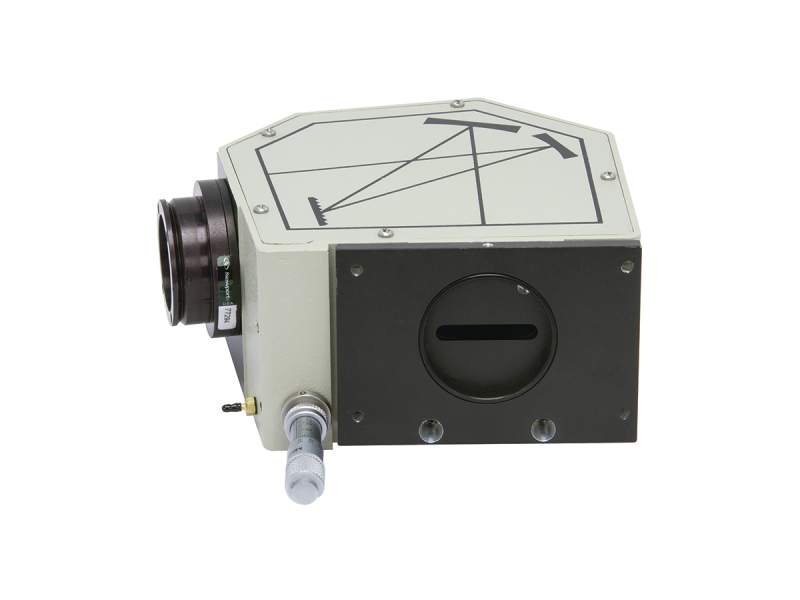

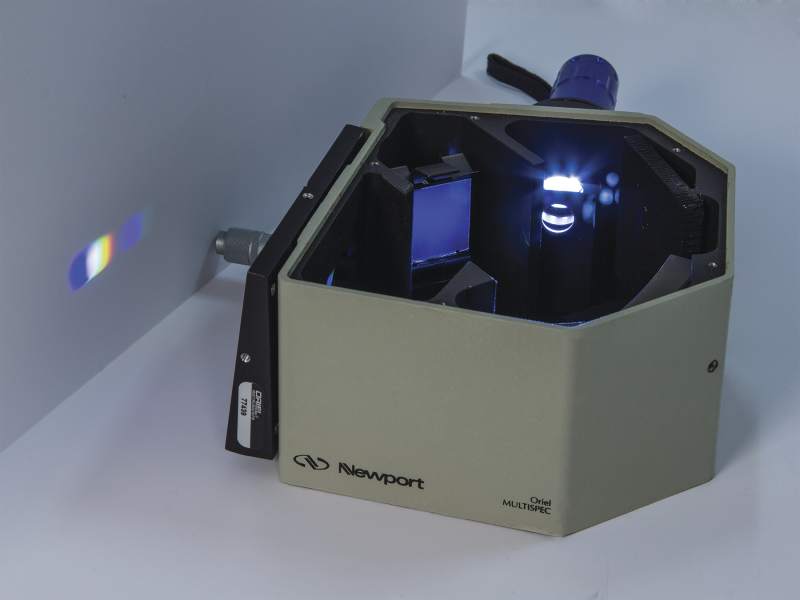

The 77400 MS125™ Spectrograph is one of our most popular spectrographs. It is a low cost, manually operated, 1/8 m spectrograph with superior performance. It’s versatility and performance makes it ideally suited for non-imaging applications. It’s small size, simple design and durability make it suitable for OEM and research applications. Interior baffles prevent light scatter and compatible gratings are designed to minimize stray light. Gratings may be easily interchanged without requiring realignment of the instrument.

Order the model 77400 for just the spectrograph, when you wish to use your own camera. Order model 78877 includes the MS125 spectrograph, 78855 LineSpec CCD camera and your choice of one grating and one fixed slit.

Specifications

Technical Specs

Wavelength Range
180 nm to 24 µm
Resolution
0.22 nm
Output Focal Length
120 mm
Wavelength Selection Method
Manual
Wavelength Accuracy
1 nm
F/#
F/3.7

Usable Wavelength Range
180 nm to 24 µm with interchangeable grating
Number of Gratings Supported
1
Weight
1.5 kg

Wavelength Range
180 nm to 24 µm
Resolution
0.22 nm
Output Focal Length
120 mm
Wavelength Selection Method
Manual
Wavelength Accuracy
1 nm
F/#
F/3.7

Usable Wavelength Range
180 nm to 24 µm with interchangeable grating
Number of Gratings Supported
1
Weight
1.5 kg

Resources & Downloads

2D Product Drawings

BPT-pg4-82a(125.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Price
77221Fixed Slit, 50 µm Width, 3 mm Height	UNIVERSAL	$355
77220Fixed Slit, 25 µm Width, 3 mm Height	UNIVERSAL	$470
77728Fixed Slit, 100 μm Width, 3 mm Height	UNIVERSAL	$200
77222Fixed Slit, 10 µm Width, 2 mm Height	UNIVERSAL	$460
77730Fixed Slit, 200 μm Width, 3 mm Height	UNIVERSAL	$200
