Silver Mirror, General Purpose, Borofloat, 25.4 mm, 450 - 12,000 nm

The 5103 General Purpose Silver Coated Mirror can be used over a broad spectral range with better than 95% reflectivity from 450 nm to beyond 12 μm. It's proprietary silver-based coating makes this 25.4 mm (1.0 inch) diameter mirror highly reflective from 0° to 45° and virtually insensitive to polarization. Protective dielectric coatings make it resistant to tarnish and oxidation. Plus it has minimal phase distortion, so it is useful for ultrafast-pulsed applications with Ti:Sapphire and other lasers.

Specifications

Technical Specs

Wavelength Region
Broadband
Wavelength Range
450-12000 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
8.0 mm
Material
Borofloat® 33
Surface Quality
25-10 scratch-dig

Surface Flatness
λ/10 at 632.8 nm
Clear Aperture
≥central 80% of diameter

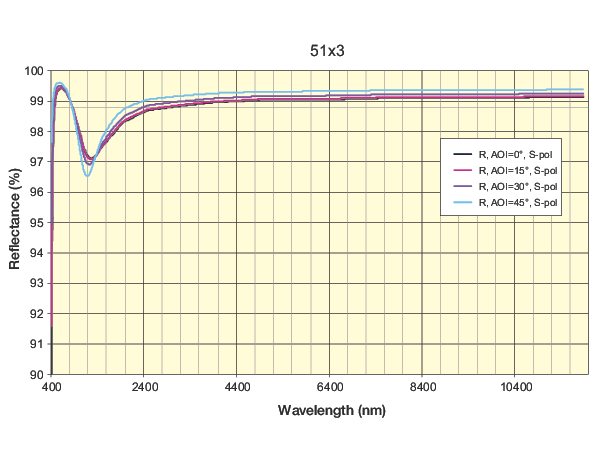

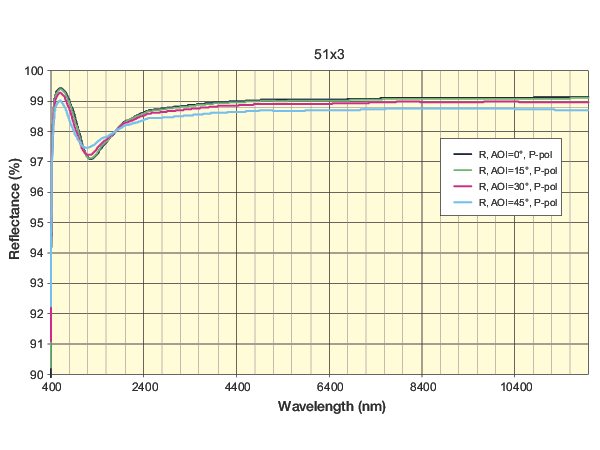

Reflectivity
R_avg>95% @ 450-1200 nm
Damage Threshold
1 J/cm² @ 532 nm, 10 ns, 20 Hz
Diameter Tolerance
+0/-0.25 mm

Wavelength Region
Broadband
Wavelength Range
450-12000 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
8.0 mm
Material
Borofloat® 33
Surface Quality
25-10 scratch-dig

Surface Flatness
λ/10 at 632.8 nm
Clear Aperture
≥central 80% of diameter
Reflectivity
R_avg>95% @ 450-1200 nm
Damage Threshold
1 J/cm² @ 532 nm, 10 ns, 20 Hz
Diameter Tolerance
+0/-0.25 mm
