Fiber-Optic Receiver, Multimode, 800-865 nm GaAS Detector, 22 GHz, FC/PC [Phase Out]

The 1484-A-50 Multimode Fiber-Optic Receiver is designed specifically for measurements at 850 nm with multimode (50 µm) input. The unique combination of focusing optics, PIN diode and amplifier selection makes high speed measurement of weak signals possible.

An external power supply, which must be purchased separately, is required – we recommend our power supply. Power supply cables and are included with each detector.

Please note that 1484-A-50 is being phased out. Upon depletion of the existing stock, it will no longer be available.

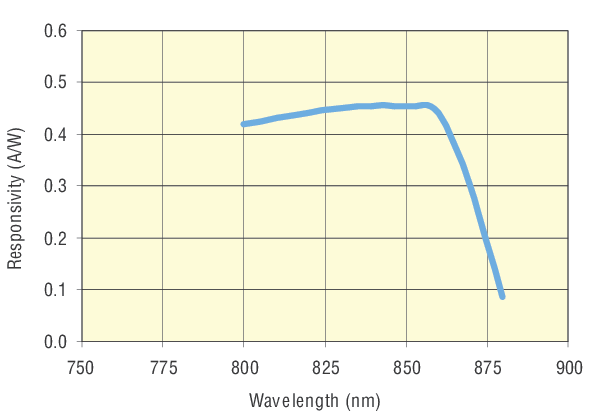

Typical Responsivity of 1484-A-50

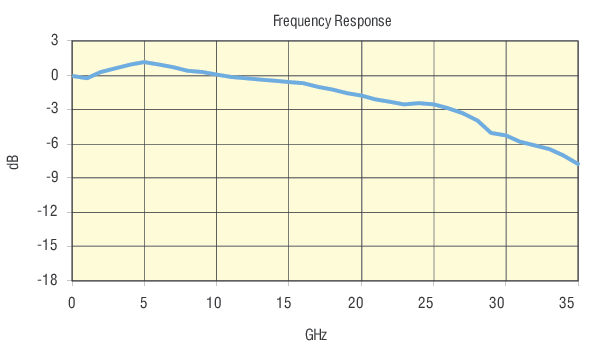

Model 1484-A-50 Receiver Frequency Response

Instrument Quality in a Small Package

The small size of the modules allows you to connect them directly to your test instrument or another high-speed component. This eliminates the need to follow the photoreceiver with coaxial cable, which can distort time-domain waveforms and attenuate CW microwave signals.

Low-Noise Amplifier

The amplifier combines moderate gain and low noise to reduce the input-referred noise floor of your system. It also maintains linearity at high output levels, providing a high dynamic range.

Specifications

Technical Specs

Device Type
Photoreceiver (AC-Coupled)
Detector Material
GaAs
Detector Type
PIN
Wavelength Range
800-865 nm
3 dB Bandwidth
15 kHz to 22 GHz
Optical Input
Fiber-optic
Fiber-Optic Connector
FC/UPC
Fiber Type
Multimode
Core Diameter
50 µm
Maximum Conversion Gain
-65 V/W
NEP
38 pW/√Hz
Dark Noise
590 µVrms

Rise Time
16.5 ps
Saturation Power
2 mW
Output Connector
Anritsu K
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
15 kHz
DC Bias Monitor Transimpedance Gain
1 V/mA
DC Bias Monitor Output
SMA
DC Bias Monitor Output Impedance
10k Ω
Power Requirements
±12-15 VDC, 100 mA
Operating Temperature Range
10-35 °C

Device Type
Photoreceiver (AC-Coupled)
Detector Material
GaAs
Detector Type
PIN
Wavelength Range
800-865 nm
3 dB Bandwidth
15 kHz to 22 GHz
Optical Input
Fiber-optic
Fiber-Optic Connector
FC/UPC
Fiber Type
Multimode
Core Diameter
50 µm
Maximum Conversion Gain
-65 V/W
NEP
38 pW/√Hz
Dark Noise
590 µVrms

Rise Time
16.5 ps
Saturation Power
2 mW
Output Connector
Anritsu K
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
15 kHz
DC Bias Monitor Transimpedance Gain
1 V/mA
DC Bias Monitor Output
SMA
DC Bias Monitor Output Impedance
10k Ω
Power Requirements
±12-15 VDC, 100 mA
Operating Temperature Range
10-35 °C
