9356 Micrometer

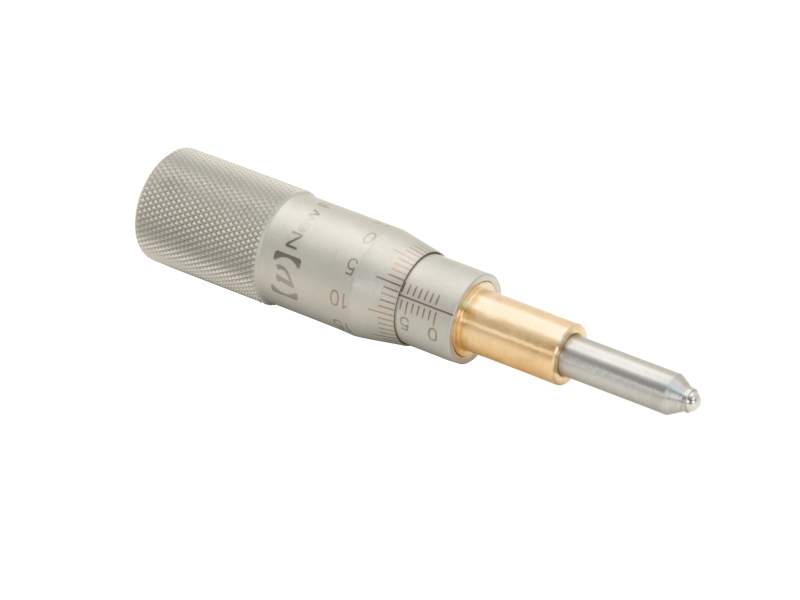

Micrometer, 1.0 in. Travel, Unthreaded, For 9063 Series Stages

Model: 9356

$122

In Stock

Compare

Add to List

Product Series Overview

Smooth-bore Micrometer Heads

The 9356 Micrometer Head features a smooth-bore unthreaded mounting shank for use with slip-in, clamp style mounts. The 9356 Micrometer is a high-quality 1.0 inch travel micrometer that is ideal for use with our 9063 Series gothic-arch-bearing translation stages. The Model 9354 provides smooth and accurate motion over its 1.0 inch travel range.

Specifications

Technical Specs

Travel Range

25.4 mm
Adjustment Screw Thread

50.8 TPI
Drive Type

Knob
Graduations

10 µm
Axial Load Capacity

90 N

Sensitivity

1.0 µm
Drive Screw Pitch

0.5 mm
Mounting

9.5 mm Shank

Travel Range

25.4 mm
Adjustment Screw Thread

50.8 TPI
Drive Type

Knob
Graduations

10 µm
Axial Load Capacity

90 N

Sensitivity

1.0 µm
Drive Screw Pitch

0.5 mm
Mounting

9.5 mm Shank
