Compare Model Drawings, CAD & Specs Type Fiber Type Operating Wavelength Availability Price

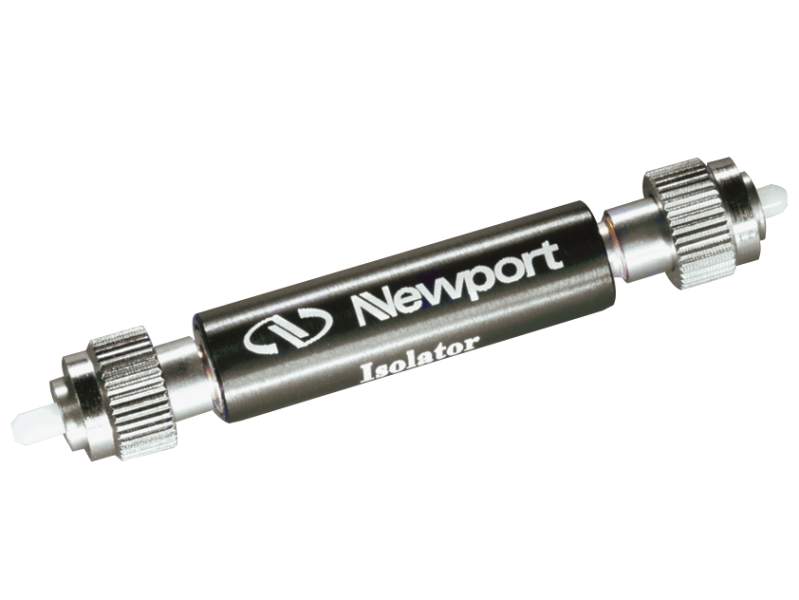

fiber-optic in-line isolator
$515
In Stock
Double Stage Fiber-optic Isolator Singlemode 1310 nm
In Stock
fiber-optic in-line isolator
$515
In Stock
Double Stage Fiber-optic Isolator Singlemode 1550 nm
In Stock
fiber-optic in-line isolator
$364
In Stock
Fiber-optic Isolator Singlemode 1550 nm
In Stock

Specifications

  • Type
    ISO-D: Double Stage Fiber-optic Isolator, ISO-S: Fiber-optic Isolator
  • Fiber Type
    P: Polarization Maintaining (PM Fiber), S: Singlemode (SM Fiber)
  • Fiber Connector
    FC/PC
  • Operating Wavelength
    1: 1310 nm, 2: 1550 nm
  • Maximum Insertion Loss
    ISO-D: 0.7 dB, ISO-S: 0.6 dB
  • Typical Insertion Loss
    ISO-D: 0.5 dB, ISO-S: 0.4 dB
  • Return Loss
    PM Fiber: >55/50 dB (without connector), SM Fiber: >60/55 dB (without connector)
  • Bandwidth
    ISO-D: ± 30 nm, ISO-S: ± 15 nm
  • Maximum Optical Power
    500 mW
  • Operating Temperature
    0 to 70°C
  • Dimensions
    ø9.5 x 65 mm
  • Extinction Ratio
    PM Fiber: 20 dB typical
  • Polarization Mode Dispersion
    ISO-D: <0.05 ps, ISO-S: <0.1 ps
  • Peak Isolation
    ISO-D: >52 dB, ISO-S: >40 dB

Features

Compact, Bulkhead Design

These Fiber Optic In-Line Isolators are provided in a bulkhead version, which has the advantage of eliminating the polarization disturbances caused by fiber pigtails. The short optical path length (~7 cm) is most desirable for ultra-short pulse and interferometric applications. The compact design, polarization insensitivity, low loss and low reflection come together to make these isolators ideal for integration in a multitude of fiber optic systems.

Rugged and Environmentally Stable

They are ruggedly built to function reliably in a wide variety of environments. The elimination of fiber pigtails makes these devices easier to handle without need of fragile fiber. The shorter path length also makes these devices less sensitive to environmental fluctuations and provides better performance.

Single and Double Stage Isolators Available

Choose from single stage isolators or double stage isolators. The single stage isolators provide >30 dB Minimum Isolation while the double stage provides >45 dB.

Applications

  • Fiber optic amplifier
  • WDM systems
  • Transmitters and fiber lasers
  • R&D laboratories
